Eclipse R POWERDRIVE

FEATURES

  • Atmospheric sealing
  • POWERDRIVE Technology – no requirement for a compressed air supply
  • MAP-F (Gas Flushing)
  • Fully portable with fixed locking feet
  • Date coder integration ready

ENERGY SAVING

  • Automatic standby mode when not in use
  • Reduced gas consumption with MAP sealing
  • POWDERDRIVE – Fully Electric – Zero Air

EFFICIENT

  • User-friendly high clarity HMI touch screen
  • Interactive HMI with operator prompts
  • Accurate monitor temperature control
  • Two minute tool changeover

Watch Video Here

Download Brochure Enquire Now

Description

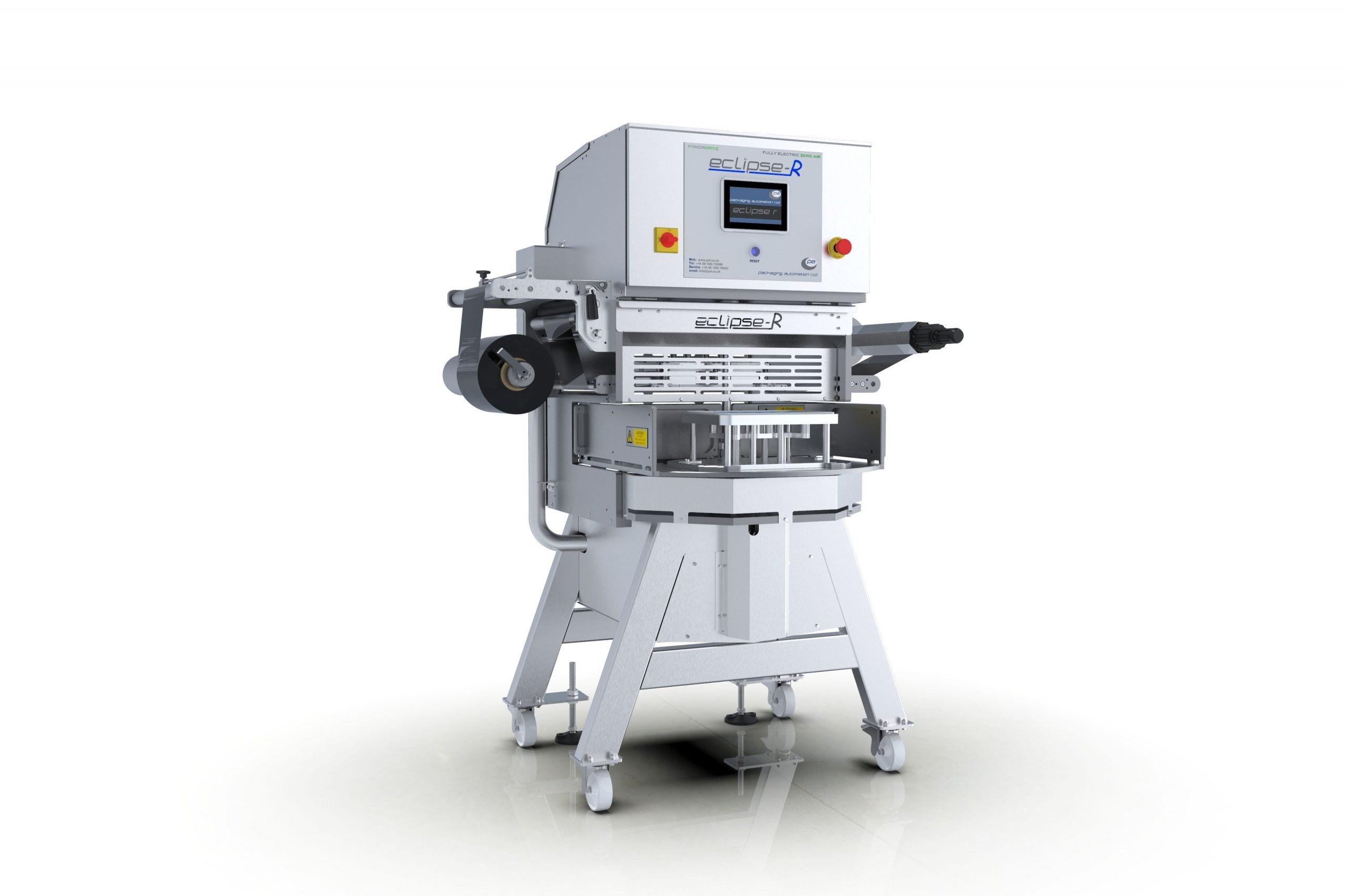

Eclipse R POWERDRIVE

The Eclipse R is a fully electric semi automatic, two station, rotary table tray sealer. Incorporating POWERDRIVE technology, there is no requirement for a compressed air supply. It can be configured to have an automatically rotating table to reduce operator strain. The ECR can be used to seal reel fed film or pre-cut lids to pre-formed trays. It can be configured to use MAP-F gas flushing (with the option of high oxygen) for extended shelf life. Dependent on the tray size and packing mode it can seal four plus packs at a time giving a maximum output of 40 packs per minute. Electric supply only is required for this machine.

MATERIALS

The Eclipse R has the ability to heat seal reel fed film, paper or laminate lids to preformed trays and containers of CPET, Polypropylene, PVC, Styrene, Board, Smooth walled foil, pre- cut board, Pulp, Paper, Plastic, and many other types of containers.

FLEXIBLE TOOLING

  • Two minute tool changeover
  • Quick release tools
  • Inbuilt tool docking system aligns electrical and gas connectors
  • Lightweight tooling
  • Quick release cutting blades
  • Waterproof heater mats, rapid warm up times
  • Eco-Cut film saving tooling options
  • Inside-cut & foil crimping functions
  • Capability to seal pots/trays up to 120mm deep

HYGIENIC

  • Full hygienic, robust construction to food industry standards
  • Full open access with interlocked guarding and open construction machine bed for hygiene

INTELLIGENT

  • Automatic recipe driven film set up
  • Film snap protection
  • Easy to follow guided film path for loading
  • Self-diagnostic
  • Interactive screen: coder can be controlled through the machine HMI
  • Servo controlled film feed ensures foil trays can sealed with reel fed film
  • Remote access solution for remote diagnostics  and program updates
  • SQL data logger

Just contact us to discuss and we will find the optimal solution to suit your requirements.
