Eclipse SL4

FEATURES

  • Atmospheric sealing
  • MAP-F (Gas Flushing)
  • MAP-V (Vacuum/Gas Flushing)
  • SkinPac – below the sealing edge
  • SkinPac Plus – up to 100mm above the base of tray
  • Fully operational from both sides
  • Fully portable with fixed locking feet
  • Date coder integration ready
  • Bypass/Passive conveyor available
  • Industry 4.0 ready

ENERGY SAVING

  • POWERDRIVE – fully electric – zero air
  • ‘Soft Seal’ profile function – quiet mode
  • Automatic standby mode when not in use
  • Reduced gas consumption with MAP sealing

EFFICIENT

  • User-friendly high clarity 12” HMI touch screen
  • Interactive HMI with operator prompts
  • Manually adjustable self-centering infeed guides (servo option available)
  • Accurate monitor temperature control
  • Zonal guarding protection system

Watch Video Here

[su_button url=”https://versatilepackaging.ie/wp-content/uploads/2019/08/SL4-Motion.pdf” target=”blank” background=”#43B02A” size=”4″ icon=”icon: download”]Download Brochure[/su_button]

[su_button url=”https://versatilepackaging.ie/packaging-machinery-equipment-enquiry/” target=”blank” background=”#43B02A” size=”4″ icon=”icon: hand-o-right”]Enquire Now[/su_button]

Description

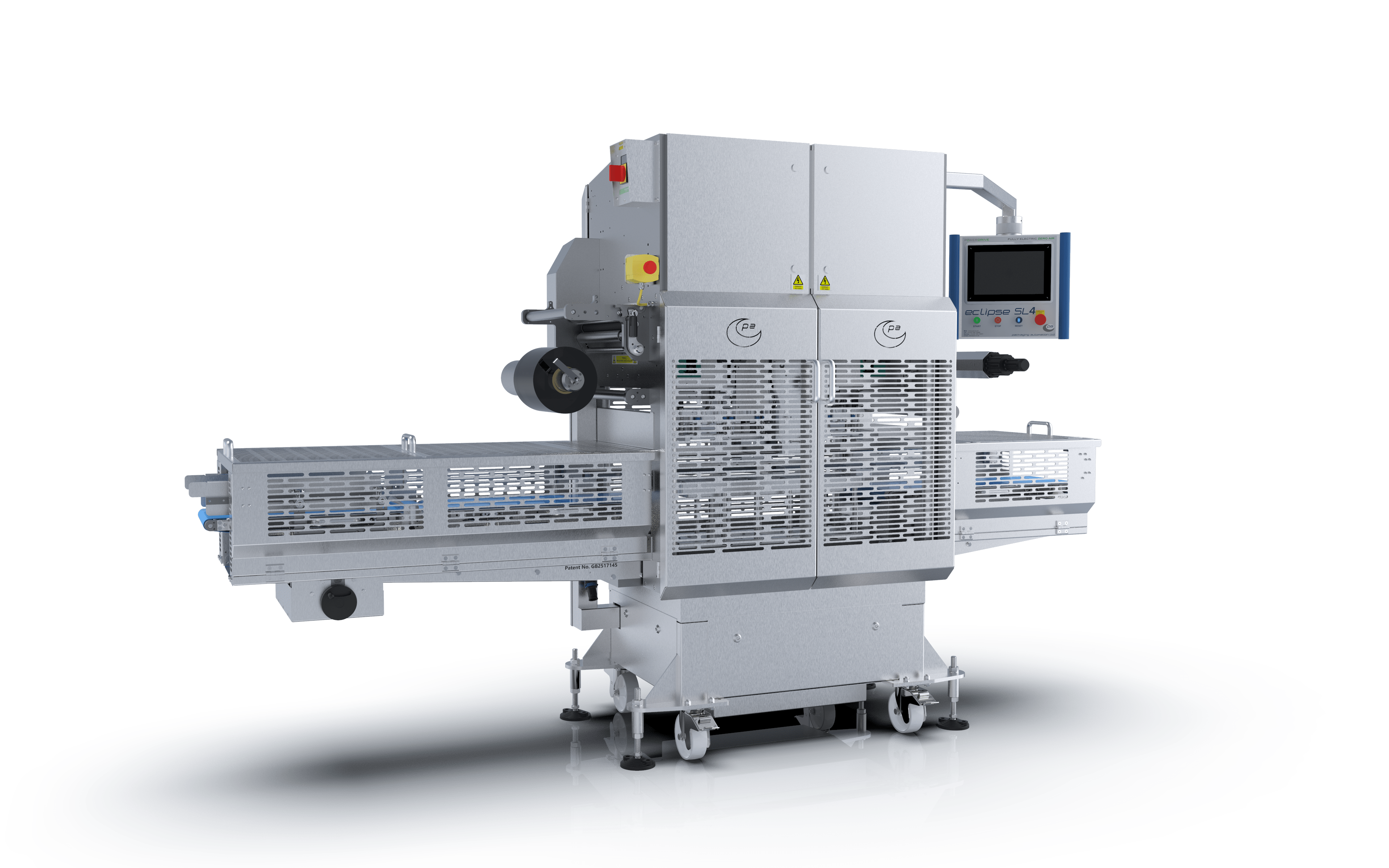

Eclipse SL4

The Eclipse SL4 is a fully electric automatic tray sealer combining medium speed output with quick tool changes and a compact space saving design. Incorporating POWERDRIVE technology, there is no requirement for a compressed air supply. It can be used to seal reel fed film to pre-formed trays and can be configured to use MAP-F gas flushing, full MAP-V vacuum and SkinPAC for extended shelf life.  Dependent on the tray size it can seal up to 5 packs at a time giving a maximum output of 75 packs per minute. Electric supply only is required for this machine.

MATERIALS

The Eclipse SL4 has the ability to heat seal reel fed film, PET, Polypropylene, PVC, Styrene, Board, Smooth walled foil, pre-cut board, Pulp, Paper, Plastic, and many other types of containers.

FLEXIBLE TOOLING

  • POD-tech, cartridge style tooling – gives a 90% reduction in any unplanned downtime
  • Two minute tool changeover
  • Easy height-adjusting transfer arm
  • Quick release tools
  • Inbuilt tool docking system aligns electrical and gas connectors
  • Lightweight tooling
  • Quick release cutting blades
  • Waterproof heater mats, rapid warm up times
  • Eco-Cut film saving tooling options
  • Inside-cut & foil crimping functions

HYGIENIC

  • Full hygienic, robust construction to food industry standards
  • Full open access with interlocked guarding and open construction machine bed for hygiene
  • Quick release removable conveyors

INTELLIGENT

  • Automatic recipe driven film setup
  • Auto adjusting film tension system
  • Film snap protection
  • Easy to follow guided film path for loading
  • Intelligent self-diagnostic system
  • Tool pack block sensor to avoid smash ups
  • Dual pack crush protection on stepping belt and in sealing zone
  • Industrial remote access diagnosis
  • Interactive screen – coder can be controlled    through the machine HMI
  • RFID fob access and full audit trail
  • DataConnect – online data capture solution
  • SQL data logger

Just contact us to discuss and we will find the optimal solution to suit your requirements.
