Description

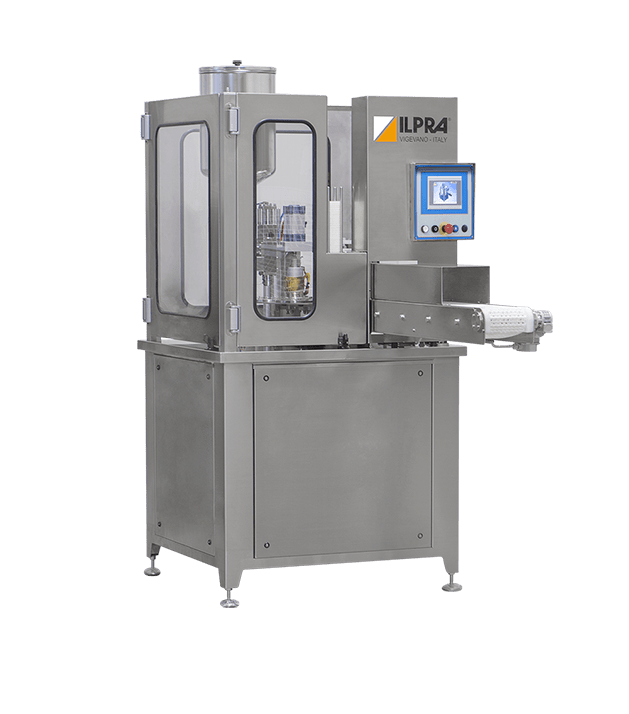

Fill Seal 2000
The Fill Seal 2000 is a rotary table filling/sealing machine, ideal for small start-ups up to medium production levels. Compact and designed to be integrated into an automatic line or to operate as a stand alone machine. The FS 2000 model can be equipped with a printing system centered directly on the film of sealing. Perfect for packaging dairy products, sauces, creams and other liquid/pasty products. All machine movements are mechanical in nature, thus guaranteeing maximum working precision and considerable ease of use and maintenance.
The maximum production capacity is about 2000 pcs per hour and can seal containers up to 125 mm in diameter.
Main Standard Features
| Hygienic design |
| Mechanical drive |
| Quick mould change |
| Touch screen |
| Maximum integrability and customization |
Main Options and Accessories
| snap on lids |
| Laminar flow hood |
| Film Version |
| System for sanitizing materials |
| Doser additional |
| CIP washing configuration |
| Print centering system (film version) |
| Vacuum Gas version (film version) |
| Version for glass/ceramic |
Main technical data
| Machine weight (Kg) | approx. 400 |
| Installed Power (Kw) | 3 |
| Air consumption (bar – lt/cycle) | 6 – approx. 7 |
| Max. diameter Containers (mm) | 125 (1 x cycle) |
| Max. height Containers (mm) | 125 |
Machine dimensions
Just contact us to discuss and we will find the optimal solution to suit your requirements.
